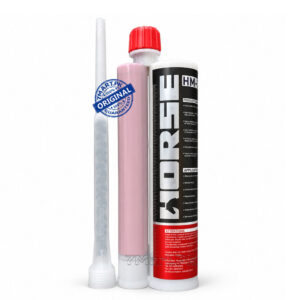

HORSE HM-500 Injectable Epoxy Anchor Adhesive
HORSE HM-500 is a high-performance injectable epoxy anchor and chemical anchor adhesive for concrete anchoring and structural reinforcement. It is a two-component modified epoxy resin system. It works with threaded bars and reinforcing bars in both cracked and uncracked concrete.
If you are looking for HORSE HM-500 in Pakistan, 7Mart provides product information and technical details for this anchoring solution. In addition, the HM-500 epoxy anchor supports construction, reinforcement, and concrete anchoring applications where strong bonding is needed.
For projects that need an anchor epoxy for concrete, HM-500 provides an injectable epoxy anchoring system. It is suitable for threaded bars and reinforcing bars in cracked and uncracked concrete.
Key Features
HORSE HM-500 provides several features for professional concrete anchoring applications. For example, it offers:
- Two-component modified epoxy resin anchoring system
- Suitable for cracked and uncracked concrete
- High strength and good toughness
- High tensile, flexural, and compressive strength
- Moisture tolerant
- Aging and thermal resistance
- Acid and alkali resistance
- Seismic resistance without expansion forces
- Excellent thixotropy for side and overhead anchoring
- Static mixer and dispenser cartridge system
- 3:1 mixture ratio by weight
- 390 ml cartridge packaging
- Non-volatile matter content of at least 99%
Therefore, HM-500 epoxy anchor can support a range of concrete and structural anchoring applications.
Applications of HORSE HM-500
The HORSE HM-500 chemical anchor adhesive supports different construction and structural anchoring needs. The product documentation lists several applications.
Rebar Anchoring
For example, HM-500 can be used for planting and anchoring reinforcing bars in concrete structures.
Threaded Rod and Anchor Bolt Fixing
In addition, the HM-500 epoxy adhesive can be used with threaded bars, threaded rods, and anchor bolts for concrete anchoring applications.
Structural Reinforcement
HM-500 also supports building structure reinforcement, framework anchoring, and steel-to-concrete structural connections.
Equipment Fixation
Furthermore, HM-500 can support the basic fixation of various equipment according to the product documentation.
Infrastructure Applications
The technical documentation also lists applications for highways, bridges, water-conservancy projects, advertisement boards, noise barriers, and barricades.
HORSE HM-500 Technical Specifications
| Specification | HORSE HM-500 |
|---|---|
| Product Type | Injectable Epoxy Anchor Adhesive |
| Resin System | Two-component modified epoxy resin |
| Package | 390 ml cartridge |
| Mixture Ratio | 3:1 by weight |
| Density | 1.5 ± 0.1 g/cm³ |
| Viscosity | 18–22 Pa·s |
| Tensile Strength | ≥55 MPa |
| Tensile Modulus | ≥3500 MPa |
| Flexural Strength | ≥70 MPa |
| Compressive Strength | ≥82 MPa |
| Thixotropy Index | ≥4.0 |
| Non-Volatile Matter | ≥99% |
These technical values come from the HORSE HM-500 product data sheet. :contentReference[oaicite:0]{index=0}
Working Time and Curing Time
The working and curing time of HORSE HM-500 changes with the ambient temperature. Therefore, always check the actual temperature before installation.
| Ambient Temperature | Operable Time | Curing Time |
|---|---|---|
| -5°C | 60 minutes | 72 hours |
| 0°C | 45 minutes | 48 hours |
| 10°C | 30 minutes | 24 hours |
| 20°C | 15 minutes | 12 hours |
| ≥30°C | 20 minutes | 6 hours |
Also, follow the manufacturer’s technical requirements during installation and curing.
How to Install HORSE HM-500
Correct hole preparation helps achieve proper chemical anchoring performance. The documented process includes drilling, cleaning, injecting, inserting the anchor, and curing.
1. Drill the Hole
First, drill the hole at the required position. Use the required hole diameter and anchoring depth.
2. Clean the Hole
Next, brush and blow the hole to remove dust and debris. Repeat the cleaning process as recommended in the technical documentation.
3. Prepare the Adhesive
Then, use the appropriate dispenser and static mixer with the HM-500 cartridge. Remove the initial unmixed material before application.
4. Inject the Adhesive
After that, inject the adhesive from the bottom of the hole. Fill approximately two-thirds of the hole with the adhesive.
5. Prepare the Steel Bar
Next, polish the steel bar, threaded rod, or anchor bolt as required before insertion.
6. Insert the Anchor
Then, insert the steel bar, threaded rod, or anchor into the hole in one direction. Continue until it reaches the required position.
7. Allow the Adhesive to Cure
Finally, keep the installed anchor undisturbed during the required curing period. Follow the curing time according to the ambient temperature.
Packaging and Storage
HORSE HM-500 comes in a 390 ml cartridge. The packaging information specifies 30 cartridges per carton. Also, the product data sheet specifies a shelf life of at least 12 months when stored correctly.
For storage, keep the cartridges in their original packaging and store them upright in a cool environment between +50°F and +77°F. In addition, protect the product from direct sunlight.
Why Use HM-500 for Concrete Anchoring?
The HM-500 epoxy anchor provides an injectable anchoring system for concrete reinforcement and structural anchoring applications. Its documented application range includes reinforcing bars, threaded bars, steel structures, concrete structures, and equipment fixation.
In addition, the product documentation lists moisture tolerance, thermal resistance, aging resistance, acid and alkali resistance, and seismic resistance among its properties.
For professional construction and anchoring work, always follow the manufacturer’s technical requirements. Also, follow the recommended hole dimensions, anchoring depth, curing conditions, and applicable safety procedures.
Anchor Epoxy for Concrete Applications
Anchor epoxy for concrete is used for chemical anchoring applications where reinforcing bars, threaded bars, or other compatible anchors need to be fixed into concrete. In this context, HORSE HM-500 is an injectable epoxy anchor system for threaded bars and reinforcing bars in cracked and uncracked concrete.
For related applications, you can also explore epoxy anchor products for concrete available at 7Mart.
Technical Information
For additional product and technical information, visit the official HORSE website.
Buy HORSE HM-500 in Pakistan from 7Mart
Looking for HORSE HM-500 in Pakistan? Explore HM-500 at 7Mart for concrete anchoring, rebar anchoring, threaded rod fixing, anchor bolt fixing, and structural reinforcement applications.
Moreover, HORSE HM-500 is available in a convenient 390 ml cartridge format for professional chemical anchoring applications.
Finally, explore the HORSE HM-500 product at 7Mart. You can also browse related epoxy anchor products for concrete anchoring applications.
